Power Management System (PMS) with GENSYS 2.0 MARINE

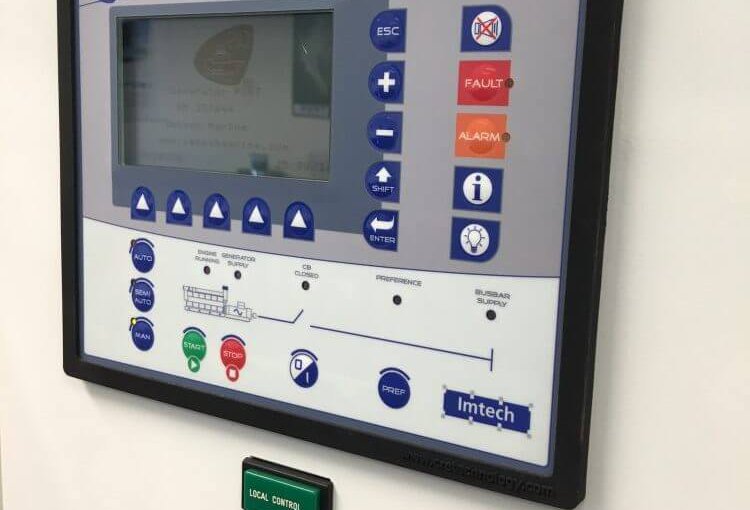

Control panel of the GENSYS 2.0 MARINE Power Management System featuring buttons and display for generator management in marine applications.

What is the GENSYS 2.0 MARINE?

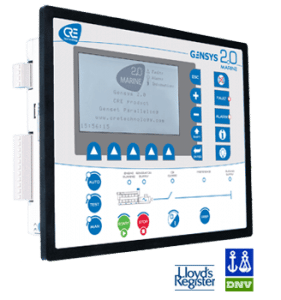

The GENSYS 2.0 MARINE is a control unit designed for marine generator switchboard panels. This Power Management System (PMS) unit combines all necessary functions to accommodate all types of marine projects. The GENSYS 2.0 MARINE units are made to fit all types of applications, 1 to 32 generator capacity. The flexibility in its design and user friendly PLC software allows the GENSYS to easily be retrofitted into existing systems, as well as improve time management and budget costs on new builds. Contact TESS Electrical Sales Department today for a FREE consultation and estimate for your yacht.

Features and Protections:

Manual and Automatic Engine Control
Automatic Start/Stop Control Depending on Load Demand
Alternator Control and Protections
Engine Parameters Display: Oil Pressure, Water Temp, Speed, Hours Run Meter…
Generator Electrical Parameters Display: Phase-Phase Voltage, Phase-Neutral Voltage, Current, Frequency
The last 50 alarms and last 50 faults are recorded in non volatile memory
Manual and Automatic Frequency and Phase Synchronization
Manual and Automatic Voltage Synchronization
Load Sharing and kW Control
Load Sharing and kVAR Control
Breaker Control
Synchronization with Bus Bar
kW and kVAR Load/Unload Management
Tie Breaker Control
Fully Compatible with all Speed Governors and AVRs
Size: 248 x 197 x 57 mm
Panel Cut Out: 177 x 228 mm
Weight: 4.2 lb

All-In-One Power Management System: Meet with the Professionals

Like every TESS product we support, the GENSYS unit benefits from our technical support team. Our Automation Department has the knowledge and experience to answer all your questions about the GENSYS 2.0 MARINE. Let our engineers share what improvements/benefits the installation will do for your vessel. TESS Electric in coordination with CRE Technology can also provide pre-programmed GENSYS 2.0 MARINE according to the customers requirements, prior to installation. Would you like to see a GENSYS 2.0 MARINE unit in person? Please contact, Karl Gallet, Sales Representative, karl.gallet@rhmarinegroup.com, to set up an appointment.

Remember to Follow us on Facebook:

Interior view of a luxury yacht's control room featuring modern navigation equipment, two ergonomic captain's chairs, and large windows providing natural light, emphasizing advanced marine technology and power management systems like GENSYS 2.0 MARINE.

General Contact Form

Understanding the GENSYS 2.0 MARINE System

The GENSYS 2.0 MARINE system is a cutting-edge power management solution designed specifically for marine applications. It integrates various functionalities to enhance the efficiency and reliability of power systems on vessels, ensuring seamless operation during critical conditions.

With features like automatic engine control and load demand management, the GENSYS 2.0 MARINE system stands out in the market. It is fully compatible with all speed governors and automatic voltage regulators, making it an ideal choice for both new installations and upgrades on existing marine power systems.

Key Benefits of Using GENSYS 2.0 MARINE

Utilizing the GENSYS 2.0 MARINE system offers numerous advantages for marine operators. The system enhances operational efficiency, reduces downtime, and improves overall safety by providing real-time monitoring of engine and generator parameters.

Furthermore, the GENSYS 2.0 MARINE includes advanced features such as manual and automatic frequency synchronization, which ensures that the power supply remains stable and reliable. This is particularly crucial for vessels operating in challenging environments where power demands can fluctuate significantly.

Installation and Support Services

Installing the GENSYS 2.0 MARINE system is streamlined by TESS Electrical LLC, which provides comprehensive installation services tailored to the specific needs of each vessel. Our team of experts ensures that every unit is integrated flawlessly into the existing electrical infrastructure.

In addition to installation, TESS Electrical LLC offers ongoing support and technical assistance for the GENSYS 2.0 MARINE system. This includes troubleshooting, maintenance, and updates to ensure that the system operates at peak performance throughout its lifespan.

Contact Our Sales Team

If you are interested in the GENSYS 2.0 MARINE system or have questions regarding its features and applications, please reach out to our dedicated sales team. We are here to provide you with all the information you need to make an informed decision.

To set up a consultation or request a quote, contact Karl Gallet at karl.gallet@rhmarinegroup.com. Our team is committed to delivering exceptional service and support to help you achieve your marine power management goals.
